C profile

C profile is a very thin anodised aluminium profile (8.6x18 mm) which mounts both flat and curved screens, therefore perfect for different lighting effects. It accommodates strips with a maximum width of 12 mm for a rated power of 15 W/m.

Installation
  • Ceiling
  • Wall applications
Cable exits & resins
  • Resin and cover

Profile and components

C profile 18x8.6

Clear 30° lens

Attached to outside of profile.

Frosted square cover

Attached to outside of profile.
Made on request

Frosted round cover

Attached to outside of profile.
Made on request

Clear flat cover

Attached to inside of profile.
This cover cannot be used to create resin-filled profiles.

Flat opal pcb cover

Attached to inside of profile.
This cover cannot be used to create resin-filled profiles.

End caps: with hole (F), without hole (SF)

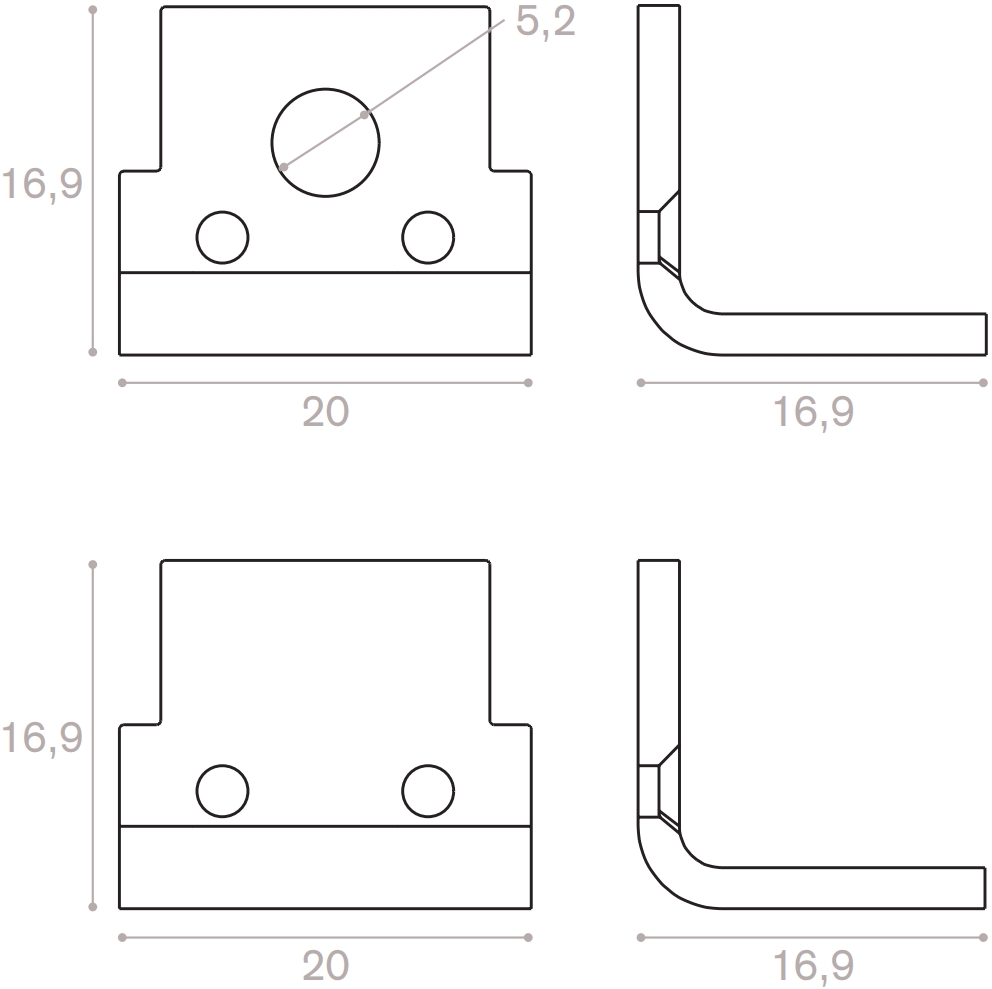

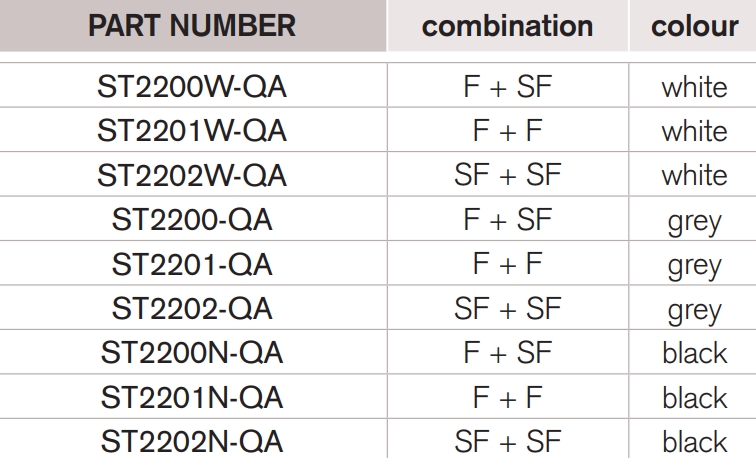

Vandal-proof end cap kit for C profile with square cover

Complete with 4 fixing screws and 2 anchors.

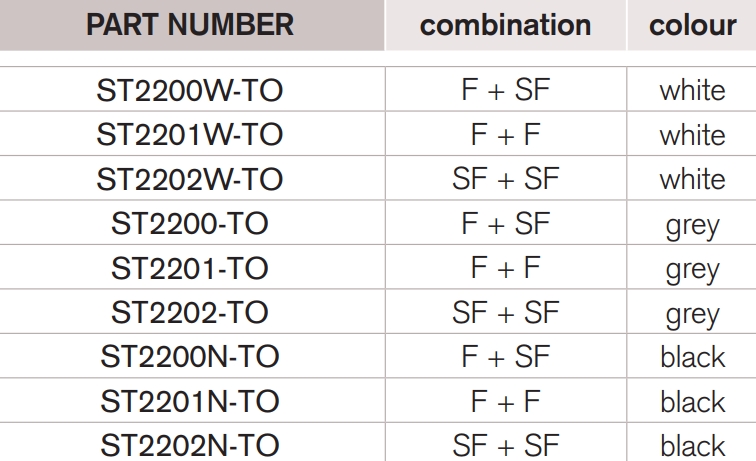

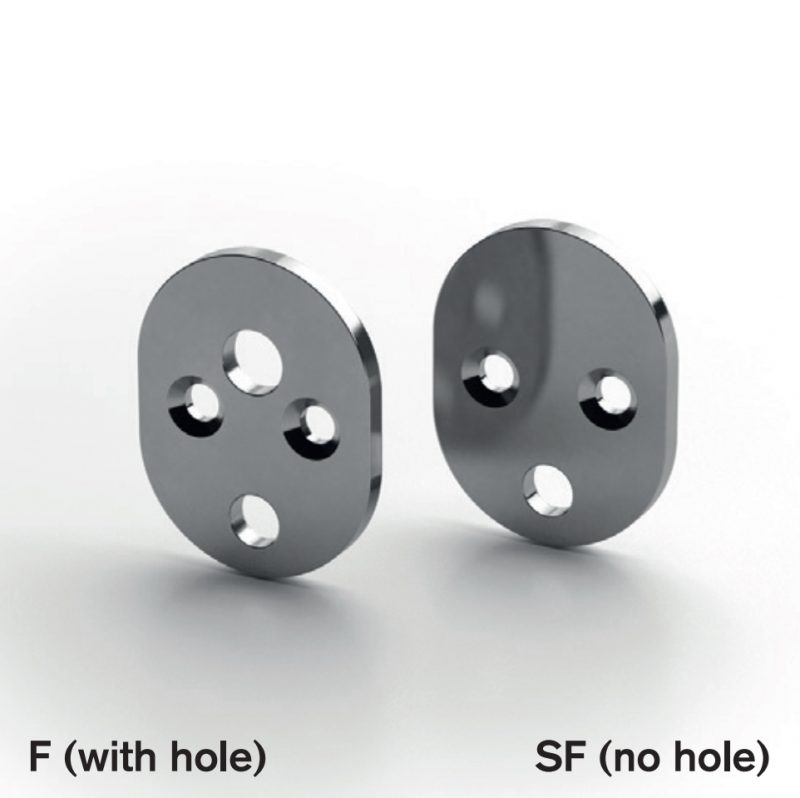

Vandal-proof end cap kit for C profile with round cover/30° lens

Complete with 4 fixing screws and 2 anchors.

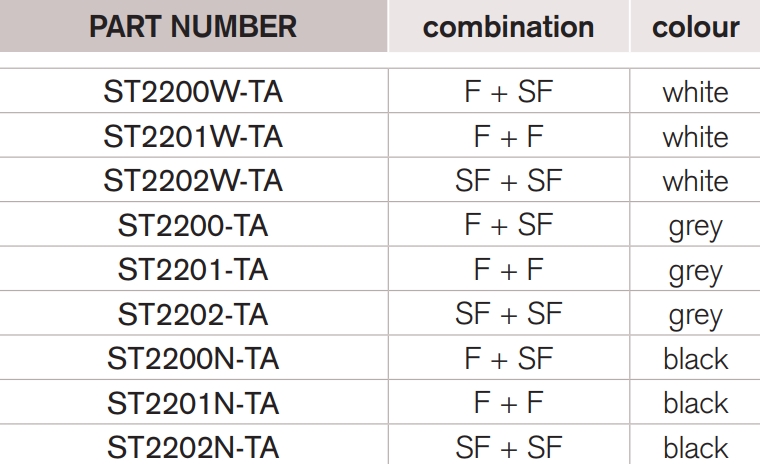

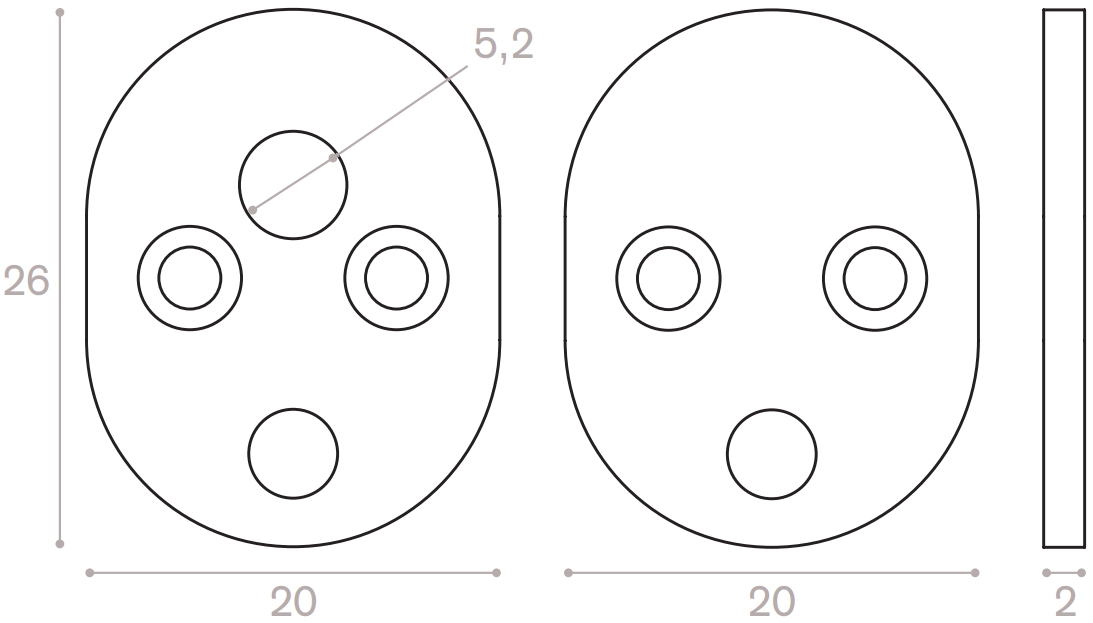

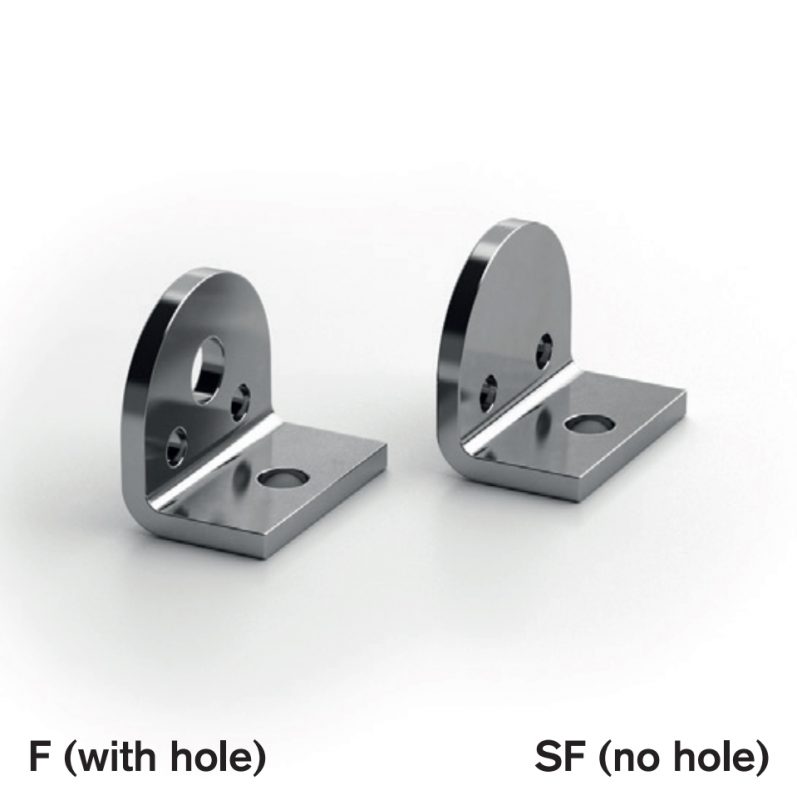

Adjustable end cap kit for C profile with round cover/30° lens

Complete with 4 fixing screws.

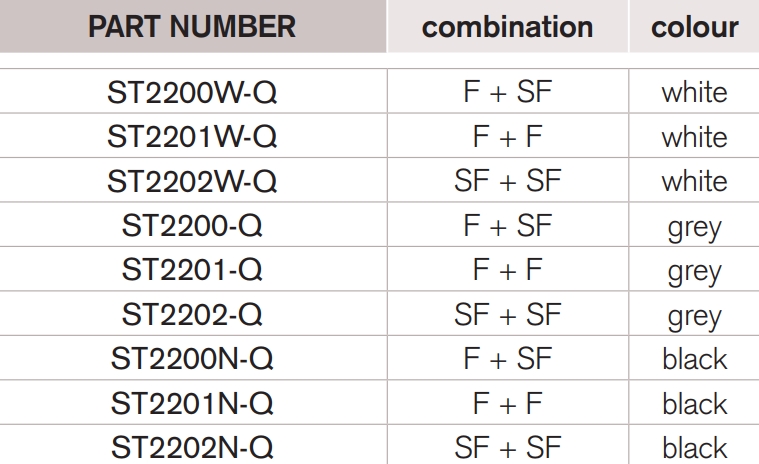

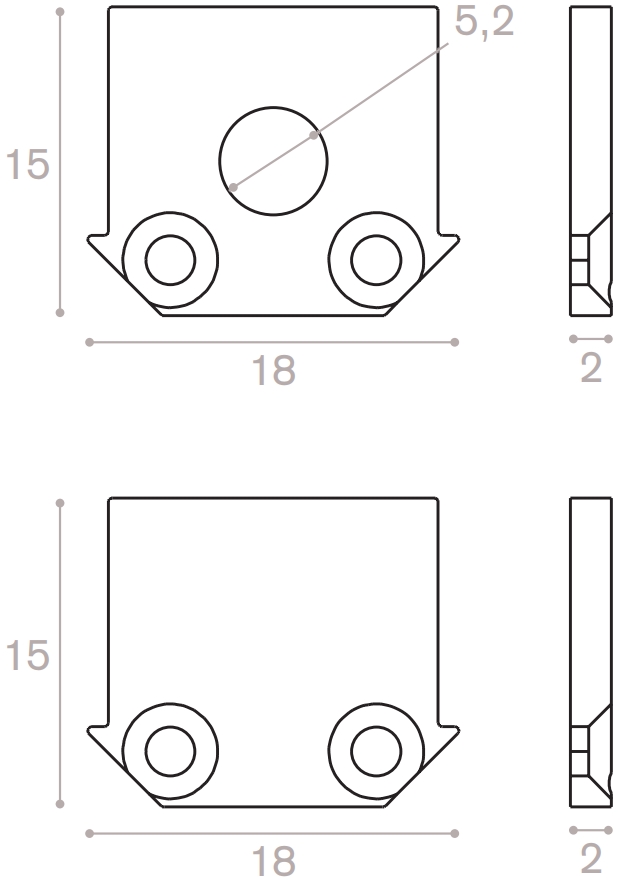

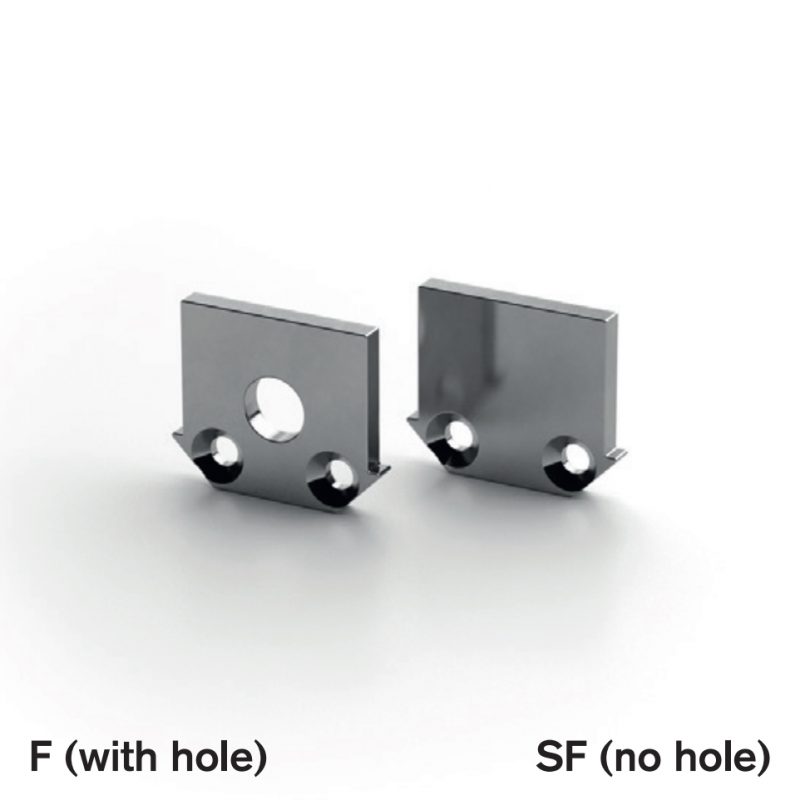

End cap kit for C profile with square cover

Complete with 4 fixing screws.

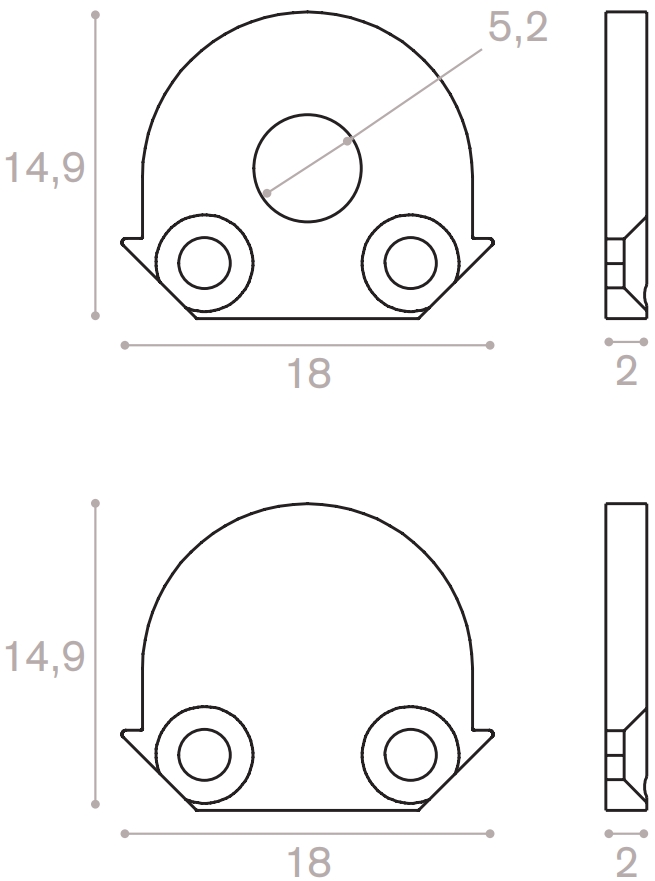

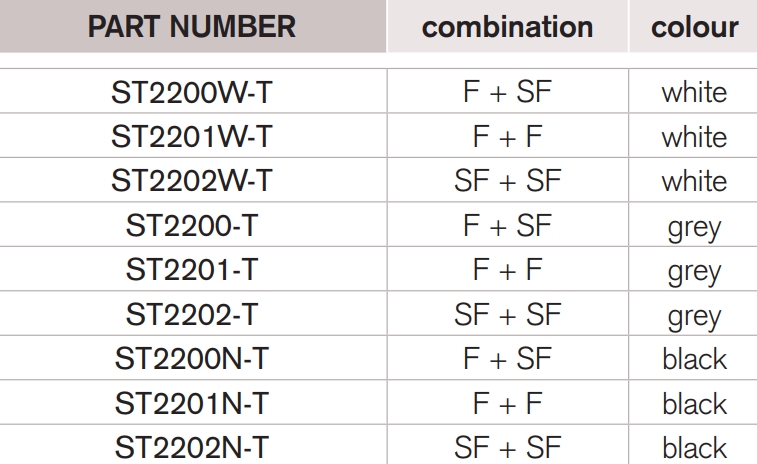

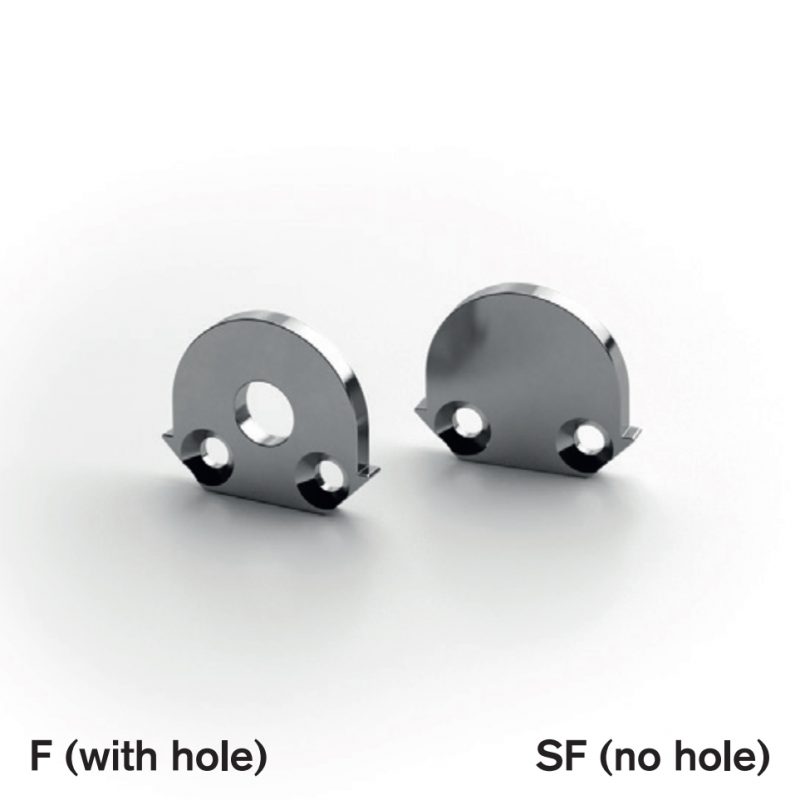

End cap kit for round cover/30° lens

Complete with 4 fixing screws.

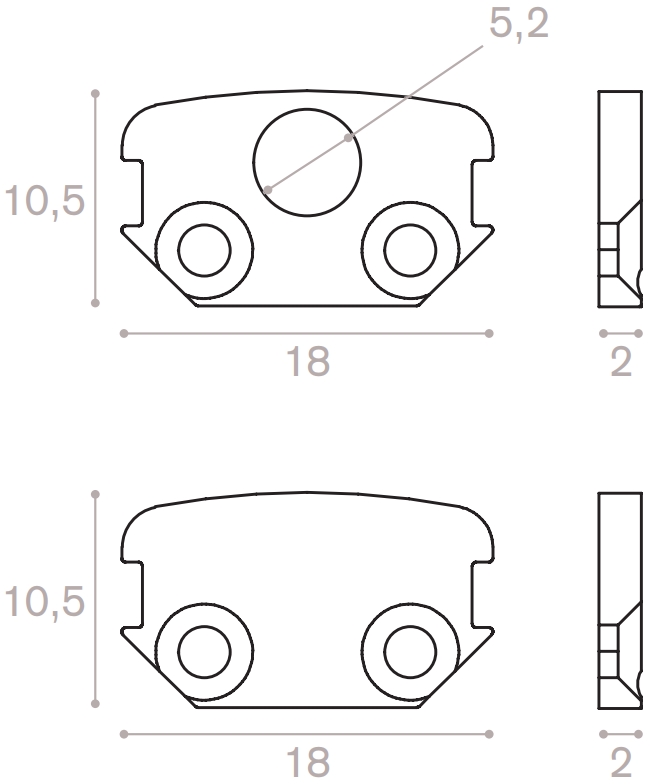

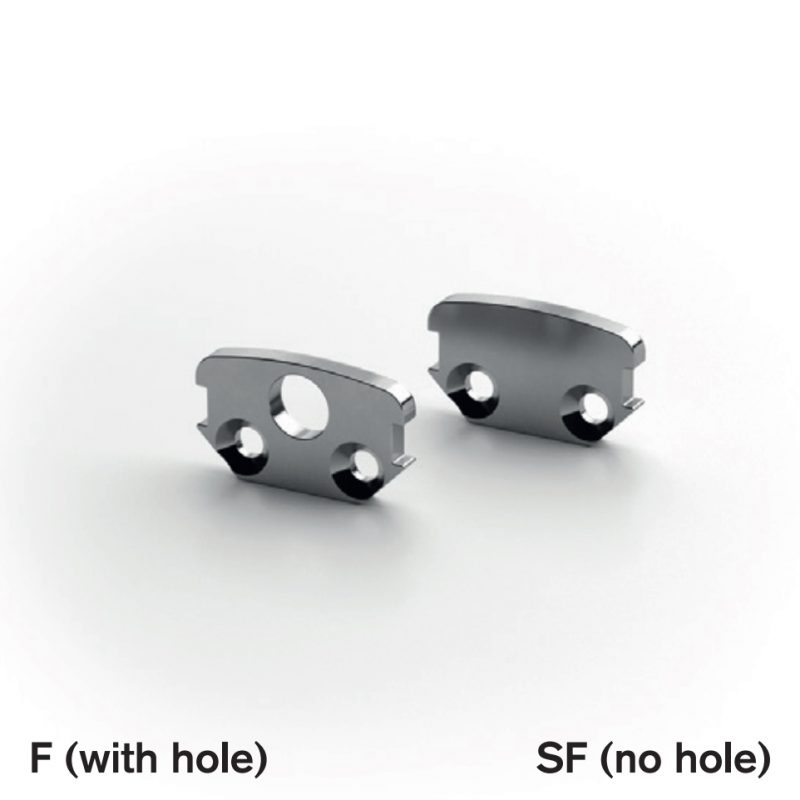

End cap kit for flat cover

Complete with 4 fixing screws.

Matching Strips

  • Decor 140 LP
  • Decor 140 MP

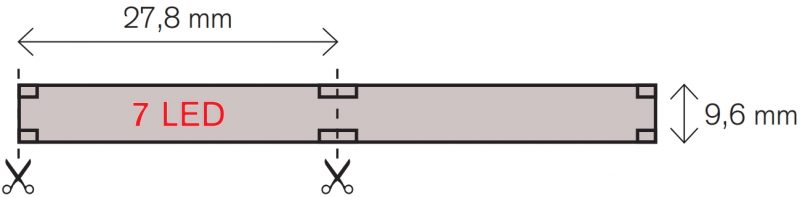

  • Decor 216
  • Easy 2835-96
  • Easy 3528-120
  • Easy 3528-120 colors
  • Easy 3528-180
  • Easy 3528-60
  • Easy 5050-30
  • Easy 5050-30 RGB
  • Easy 5050-60
  • Easy 5050-60 RGB
  • Megaslim 140 LP
  • Megaslim 140 MP
  • Micro Easy 3528-120 colors
  • Micro Easy 3528-180 white
  • Microdecor 180
  • Queen 140 LP
  • Queen 140 MP
  • Sunshine 72
  • Sunshine 96
  • Superstrip 10
  • Superstrip 3
  • Superstrip 36
  • Uniform 216

Accessories

Vandal-proof medium transverse bracket
Magnet kit
Magnet + plate kit
Universal bracket for plasterboard
Fixed wall support kit
Adjustable medium bracket kit
Adjustable high bracket kit (250 mm)
Adjustable medium bracket kit (120 mm)
Adjustable low bracket kit
Kit of two safety cords
